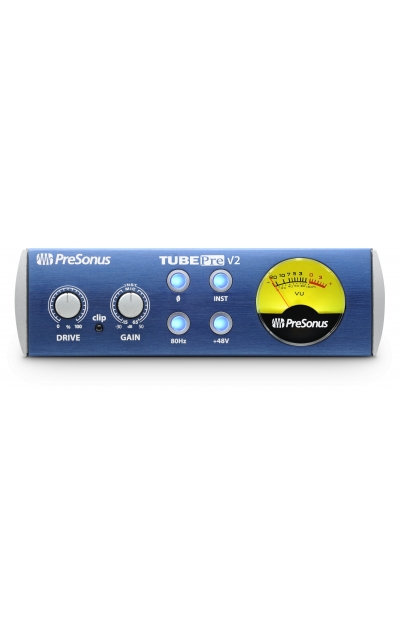

קדם מגבר כולל מד ונורות חיווי
Mic Input
|
|
Connector Type |
XLR, female, balanced |
|
EIN |
-131 dB, 20 kHz BW, max gain, Rs=40Ω, A-wtd -128 dB, 20 kHz BW, max gain, Rs=40Ω, unwtd |
|
Frequency Response |
20 Hz – 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz - 120 kHz, -3 dB, +4 dBu, unity gain |
|
THD+N |
0.01%, -10 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd |
|
Dynamic Range |
115 dB, 1 kHz, unity gain, 20 kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20 kHz BW, unwtd |
|
Input Impedance |
1.3 kΩ |
|
Phantom Power |
+48 VDC, 10 mA |
Instrument Input
|
|
Connector Type |
¼” TS, female, unbalanced |
|
Input Impedance |
1 MΩ |
Analog Output
|
|
Connector Types |
XLR, male, balanced ¼” TS, female, unbalanced |
|
Maximum Output |
+20 dBu |
|
Output Impedance |
51Ω |
Power
|
|
External Power Adapter |
+12 VDC, 1A, center-pin positive |
|
PSU Barrel Dimensions |
5.5 mm O.D., 2.1 mm I.D., 9.5 mm length |
Physical
|
|
Dimensions |
1/3U rack-mountable (screw-mount to standard rack tray, not included) |
|
Height |
1.75” (44.45 mm) |
|
Depth |
5.5” (139.7 mm) |
|
Width |
5.5” (139.7 mm) |
|
Weight |
5 lb. (2.27 kg) |
As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein at any time, without notification.
|
|
|
