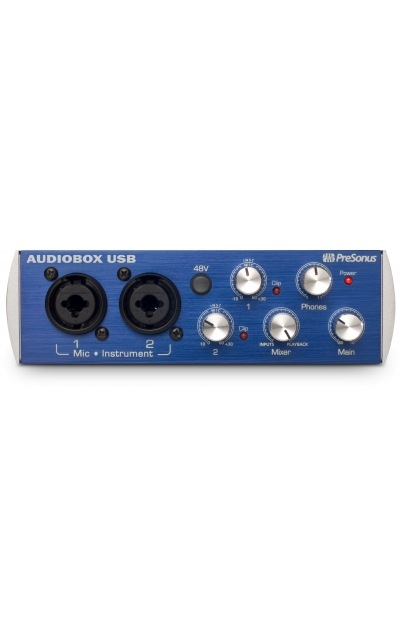

כרטיס קול 2 ערוצים בחיבור USB
Microphone Preamp
|
|
Type |
XLR Female Balanced |
|
Frequency Response (±3.0 dB) |
14 Hz to 70 kHz |
|
Input Impedance (Balanced) |
1200Ω |
|
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) |
< 0.008% |
|
S/N Ratio (Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) |
> 95 dB |
|
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) |
> 45 dB |
|
Gain Control Range (± 1 dB) |
0 dB to 35 dB |
|
Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) |
-3 dBu |
|
Phantom Power (±2 VDC) |
+48 VDC |
Instrument Input
|
|
Type |
¼" |
|
TS Female Unbalanced Input Impedance |
0.5 MΩ |
Line Outputs
|
|
Type |
¼" |
|
Balanced Output Impedance |
51Ω |
Headphone Output
|
|
Type |
¼" TRS Active Stereo |
|
Maximum Output |
60 mW/Ch @ 60Ω Load |
|
Frequency Response (±1.0 dB) |
20 Hz - 30 kHz |
MIDI I/O
|
|
Type |
Dual 5-pin Female DIN |
Digital Audio
|
|
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
105 dB |
|
DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
105 dB |
|
Bit Depth |
24 |
|
Reference Level for 0 dBFS |
+4 dBu |
|
Internal Sample Frequency Selections (kHz) |
44.1, 48 |
|
Power |
USB Bus-powered |
Physical
|
|
Dimensions |
1/3U (steel chassis) |
|
Height |
5.5” (139.7 mm) |
|
Depth |
1.75" (44.45 mm) |
|
Width |
5.5” (139.7 mm) |
|
Weight |
5 lbs (2.27 kg) |
As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein at anytime, without notification.
|
|
