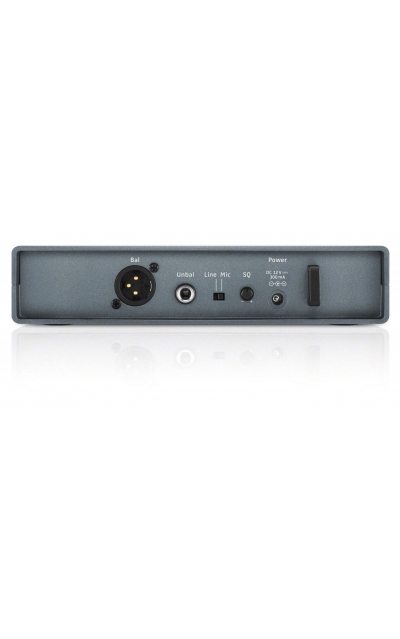

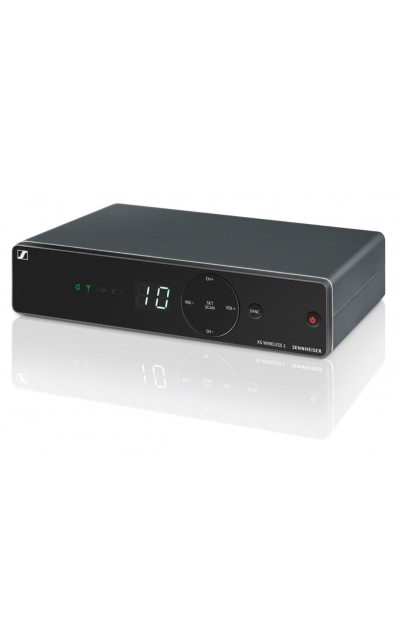

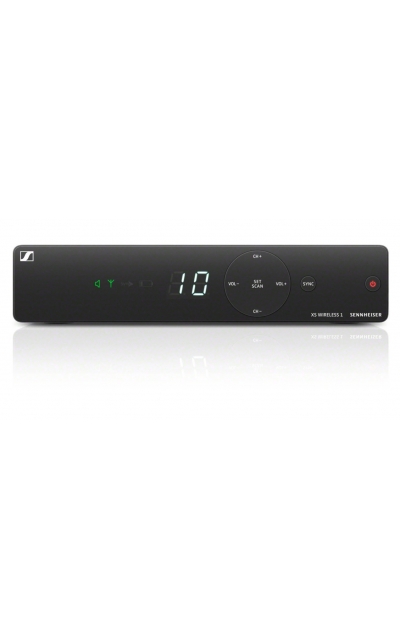

מקלט נייח מבית SEINNHEISER עם אנטנות פנימיות

Dimensions approx. 200 x 42 x 127 mm
Weight approx. 340g
Power supply 12 V DC nom. / 300 mA
(AF frequency response 50 to 16,000 Hz (–3 dB
Switching bandwidth up to 24 MHz
Operating time approx. 10 hrs
Modulation wideband FM
Output voltage '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing rugged ABS housing
Diversity reception antenna switching diversity via internal antennas
Frequency 8 frequency banks, each with up to 10 factory-preset channels
Frequency range A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz, C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation 130 dB
(Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone
(Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization
Input sensitivity 1.5 mV / Pa
Audio adjustment range 45 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
