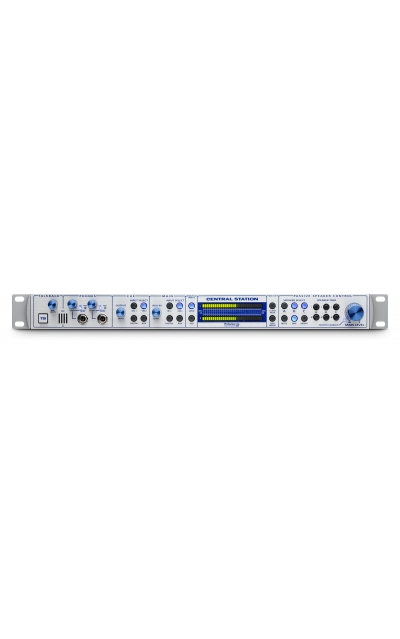

מערכת שליטת מוניטורים לאולפן
Audio Inputs
|
|
|
TRS 1 & 2
|
|
|
|
Type |
¼" TRS Passive-Balanced |
|
|
|
Input Impedance |
2-5 kΩ (Speaker load and Trim level dependent) |
|
|
|
S/N Ratio |
> 140 dB |
|
|
|
THD+N |
< 0.0005% (1 kHz @ 0 dBu) |
|
|
|
Frequency Response |
> 1 MHz |
|
|
AUX
|
|
|
|
Type |
RCA Active-Unbalanced |
|
|
|
Input Impedance |
8 kΩ |
|
|
|
S/N Ratio |
> 115 dB (1 kHz @ 0 dBu, Unity gain) |
|
|
|
THD+N |
< 0.002% (1 kHz @ 0 dBu, Unity gain) |
|
|
|
Frequency Response |
10 Hz-50 kHz, -0.5 dB |
|
|
|
Gain Range |
-90 dB to +20 dB |
|
|
S/PDIF
|
|
|
|
Types |
RCA 75Ω coax and Toslink optical |
|
|
|
Dynamic Range |
117 dB |
|
|
|
THD+N |
0.0025% (1 kHz @ -1 dBfs) |
|
|
|
Maximum output |
+18 dBu (Active-Balanced) |
|
|
|
Sample Rates |
44.1, 48, 88.2, 96, 176.4, 192 kHz |
Note: All Input specifications (except Input Impedance) measured at Speaker A output, Trim and Main Level set to maximum.
|
Audio Outputs
|
|
|
Speakers
|
|
|
|
Type |
¼" TRS Passive-Balanced |
|
|
|
Type-Mono Activated |
¼" TRS Active-Impedance Balanced |
|
|
|
Trim Range |
-90 dB to 0 dB |
|
|
|
Main Level Range |
-90 dB to 0 dB |
|
|
|
Dim Attenuation |
-30 dB |
|
|
Main
|
|
|
|
Type |
¼" TRS Active-Balanced |
|
|
|
Output Impedance |
51Ω |
|
|
|
THD+N |
< 0.0025% |
|
|
|
Frequency Response |
10 Hz-50 kHz, -0.5dB |
|
|
Cue
|
|
|
|
Type |
¼" TRS Active-Impedance Balanced |
|
|
|
Output Impedance |
51Ω |
|
|
|
THD+N |
Less than 0.003% (1 kHz @ 0 dBu) |
|
|
|
Frequency Response |
10 Hz-50 kHz, -0.5 dB |
|
|
|
Gain Range |
-90 dB to 0 dB |
|
|
|
Dim Attenuation |
-30 dB (Talkback activated) |
|
|
Headphones
|
|
|
|
Type |
¼" TRS Active Stereo |
|
|
|
Maximum Output |
150 mW/channel @ 60Ω load |
|
|
|
THD+N |
0.015% (150 mW/channel @ 60Ω load) |
|
|
|
Frequency Response |
10 Hz-50 kHz, +1 dB |
