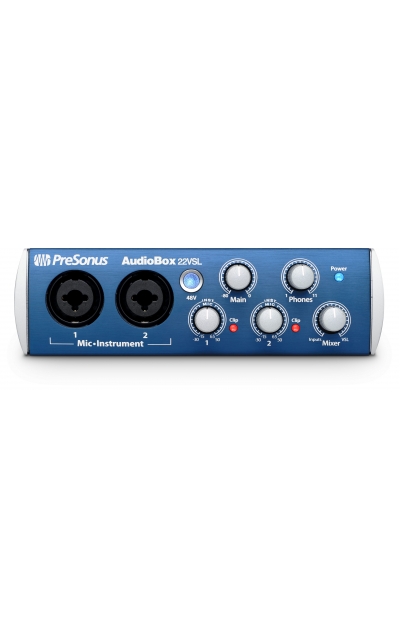

כרטיס קול 2 ערוצים
Microphone Inputs
|
|
Connector Type |
Combo, XLR, female, balanced |
|
Mic Preamp EIN |
-129 dB, 20 kHz BW, max gain, Rs=40Ω, A-wtd |
|
Frequency Response |
20 Hz - 20 kHz, ±0.3 dB, unity gain |
|
THD+N |
0.005%, 0 dBu, 1 kHz, unity gain, 20 kHz BW, A-wtd |
|
S/N Ratio |
94 dB, 0 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd |
|
Gain Control Range |
-15 dB to +65 dB |
|
Input Max Headroom |
+10 dBu, < 0.5% THD |
|
Input Impedance |
1.7 kΩ |
|
Phantom Power |
+48 VDC, 10 mA total |
Instrument Inputs
|
|
Connector Type |
Combo, ¼” TS, female, unbalanced |
|
Frequency Response |
20 Hz - 20 kHz, ±0.3 dB, unity gain |
|
THD+N |
0.006%, 0 dBu, 1 kHz, unity gain, 20 kHz BW, A-wtd |
|
S/N Ratio |
89 dB, 0 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd |
|
Gain Control Range |
-30 dB to +50 dB |
|
Input Max Headroom |
+15 dBu, < 0.5% THD |
|
Input Impedance |
1 MΩ |
Analog Outputs
|
|
Connector Type |
¼” TRS, female, impedance balanced |
|
Frequency Response |
20 Hz - 20 kHz, ±0.2 dB |
|
THD+N |
0.002%, 1 kHz, 20 kHz BW, A-wtd |
|
S/N Ratio |
107 dB, 1 kHz, max gain, 20 kHz BW, unwtd |
|
Output Level |
+10 dBu |
|
Output Impedance |
51Ω |
Headphone Outputs
|
|
Connector Type |
¼” TRS, female, stereo |
|
Maximum Power |
30 mW/ch @ 60Ω load |
|
Frequency Response |
20 Hz - 20 kHz, ±0.5 dB, max gain |
|
THD+N |
0.08%, 1 kHz, max gain, 20 kHz BW, A-wtd |
|
S/N Ratio |
90 dB, 1 kHz, max gain, 20 kHz BW, unwtd |
Digital
|
|
Host Interface |
USB 2.0 high-speed |
|
Bit Depth |
24-bit |
|
Sample Rates |
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
|
Maximum Latency |
6 mS, analog input to analog output |
|
ADC Dynamic Range |
114 dB, 48 kHz sample rate, A-wtd |
|
DAC Dynamic Range |
114 dB, 48 kHz sample rate, A-wtd |
Power
|
|
Type |
USB bus-powered, +5 VDC, < 500 mA |
Physical
|
|
Dimensions |
1/3U rack-mount (with standard rack tray, not included) |
|
Height |
1.75” (44.45 mm) |
|
Depth |
5.5” (139.7 mm) |
|
Width |
5.5” (139.7 mm) |
|
Road-rugged construction with all-metal chassis and metal knobs |
|
|
Weight |
Weight 1.6 lb. (0.7 kg) |
NOTE: As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein at any time, without notification.
|
|
